About

In this post I explore different approaches when inferencing LLMs (prompting AI) to write a small sample SwiftUI application:

1. Image to Code: Using a png image as a prompt for SwiftUI code
2. Big Prompt: Detailed initial prompt followed by refinements
3. Small Prompts: building each view component piece by piece

Summary of Findings

Prompt Approach	Result
🏆 Detailed initial text prompt	GPT-4o and Claude-Sonnet 3.5 both performed well with detailed prompts asking to write 30-50 lines of code output
💸 Multiple small text prompts	The code output is good, and you have an iterative sense of how the feature is built, but this option becomes expensive and requires greater prior knowledge to direct the solution
Image with annotations	Out of all the ‘Image to Code’ experiments this worked the best, annotations dramatically helped the solution
Image without annotations	Even for a simple UI design the result needed a lot of refinement
Reference link to Figma web page	This didn’t work at all!

Key Takeaways

• Using bigger and more detailed prompts (up to a point) is more cost effective if you’re using a tool like Cursor where your usage quota is based on the number of requests. You get more bang for your buck if you take time to compose a detailed and clear prompt.
• There is a lot of value to be gained by querying the models about choices made in the code, E.G. “are there any other ways to display a scrolling list of cards in SwiftUI?” provided a good comparison between List and LazyVStack
• Image to code does work and is not terrible… But not really optimal either in terms of the effort you have to put in to annotate the image, and the fixes needed to create output. This worked best of all with GPT-4o, but the code produced was unpredictable across different models, and needed more refinement afterwards.

Suggested Workflow

1. Start by writing clear detailed instructions about how you want your implementation to be built
2. Take time to compose your initial prompt describing in detail the problem you are trying to solve, and if you are certain about entity types to be used include them
3. Refine the code produced by drilling into non-functional requirements such as rendering performance, security and architectural flexibility either through further prompting, or manually optimising the implementation towards the best approach
4. Review the approaches developed against trusted sources using links to references in the prompt (eg. Framework Documentation)

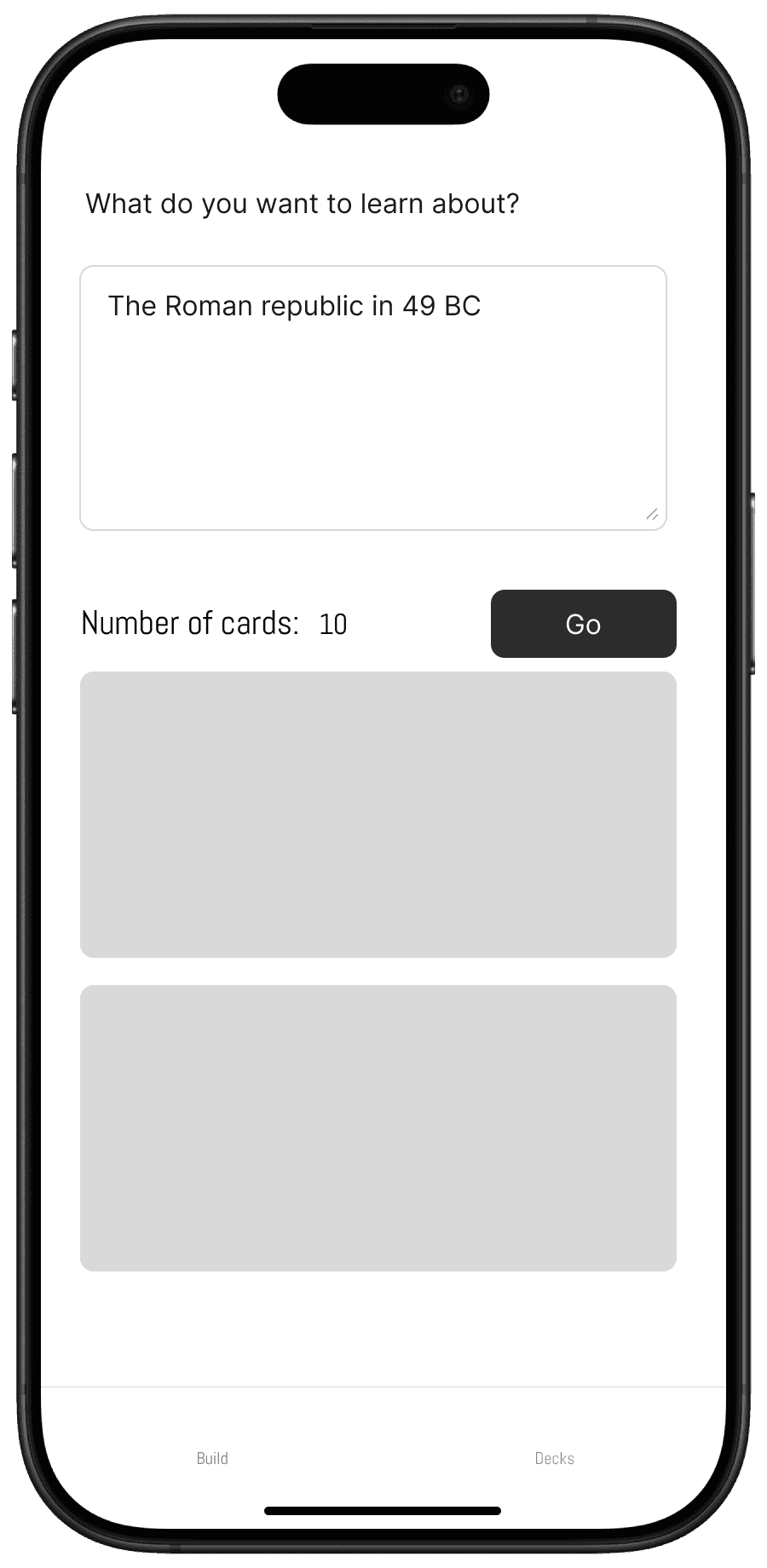

Images and Designs to Code

Methodology	Design	Output

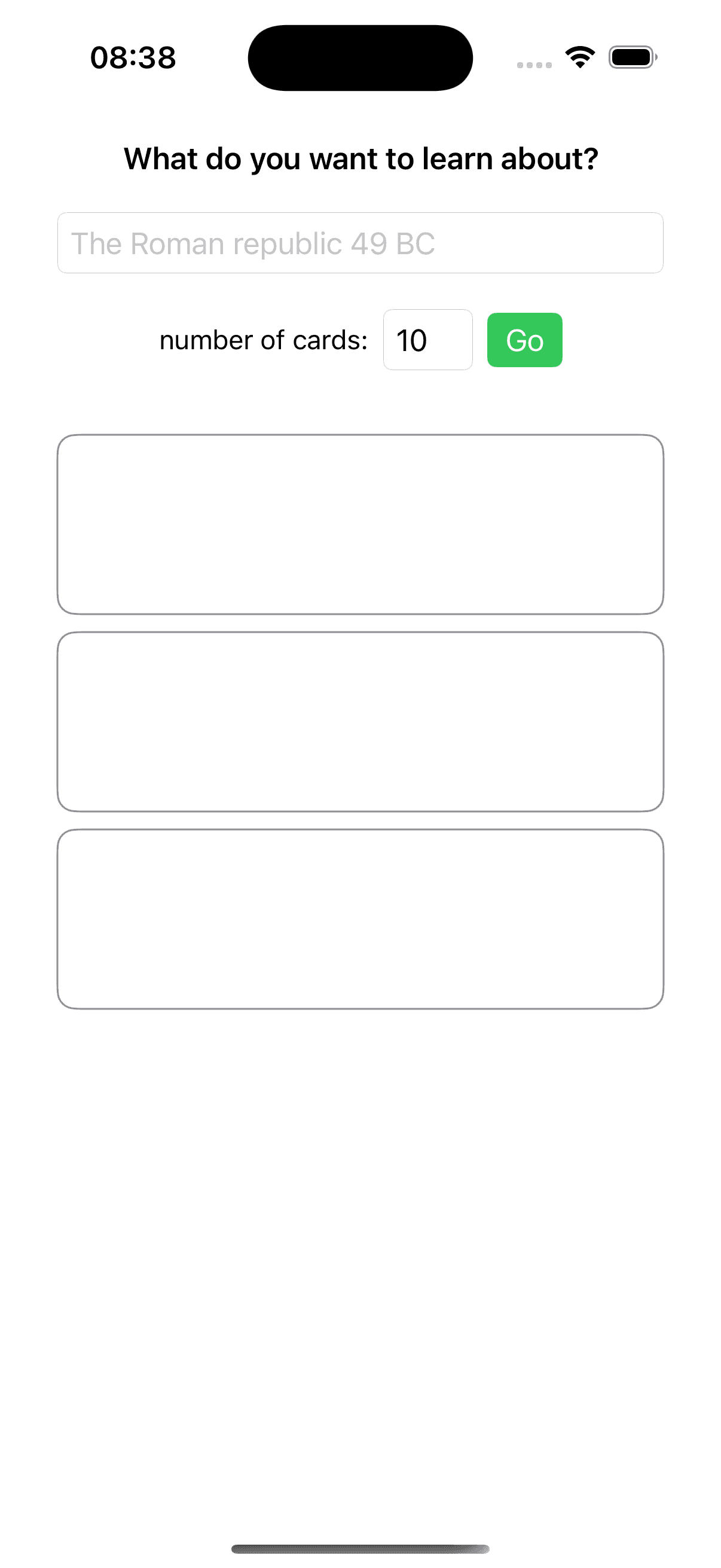

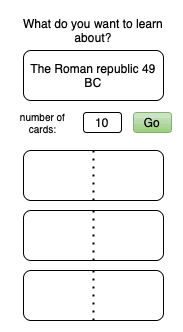

Model: claude-sonnet-3.5 PNG Without Annotations

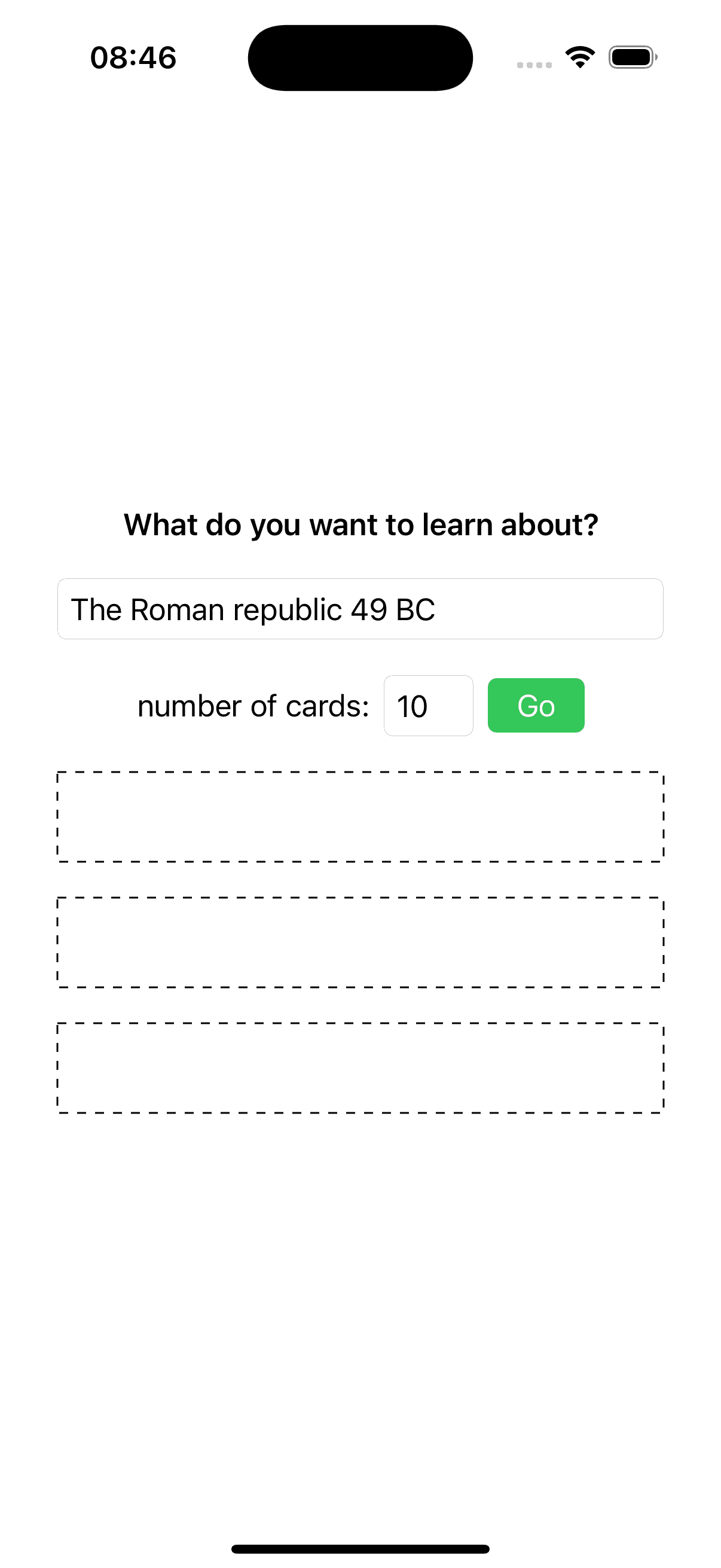

Model: GPT-4o PNG Without Annotations

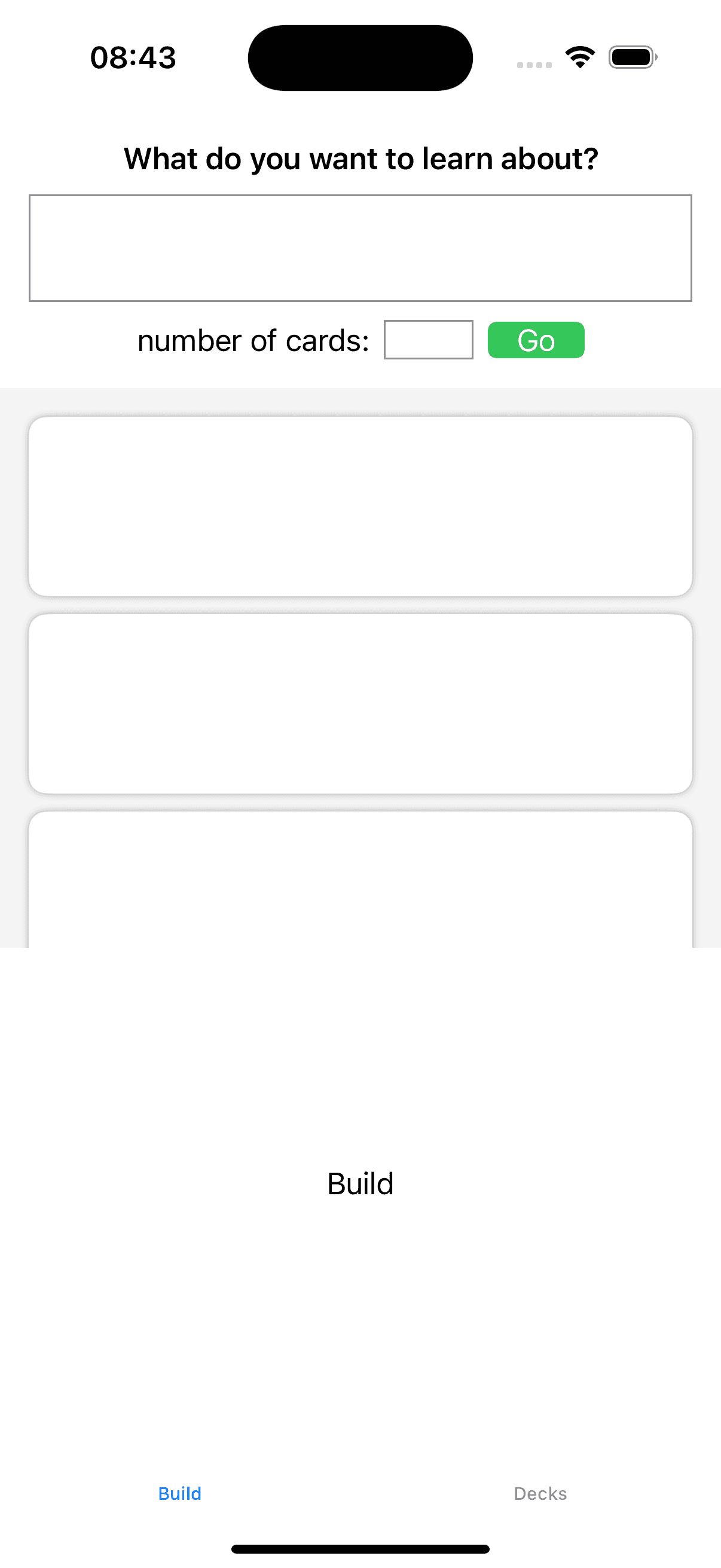

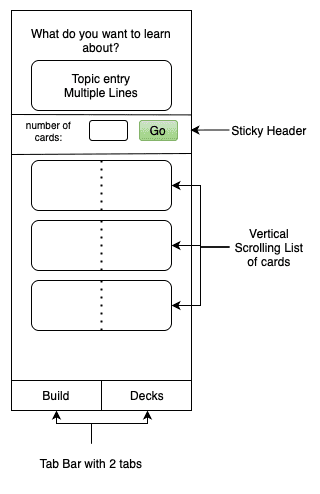

Model: claude-sonnet-3.5 PNG With Annotations

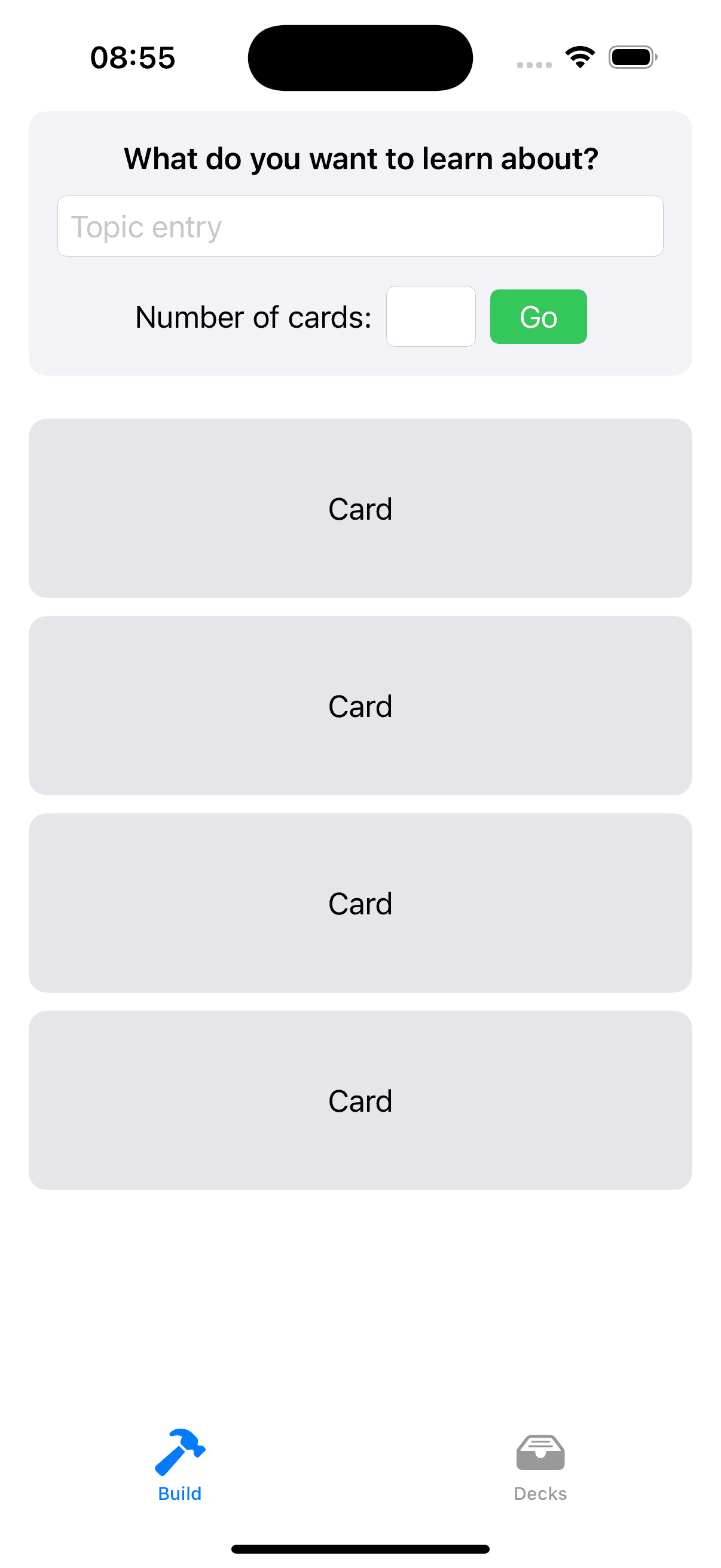

🏆 Model: GPT-4o PNG With Annotations

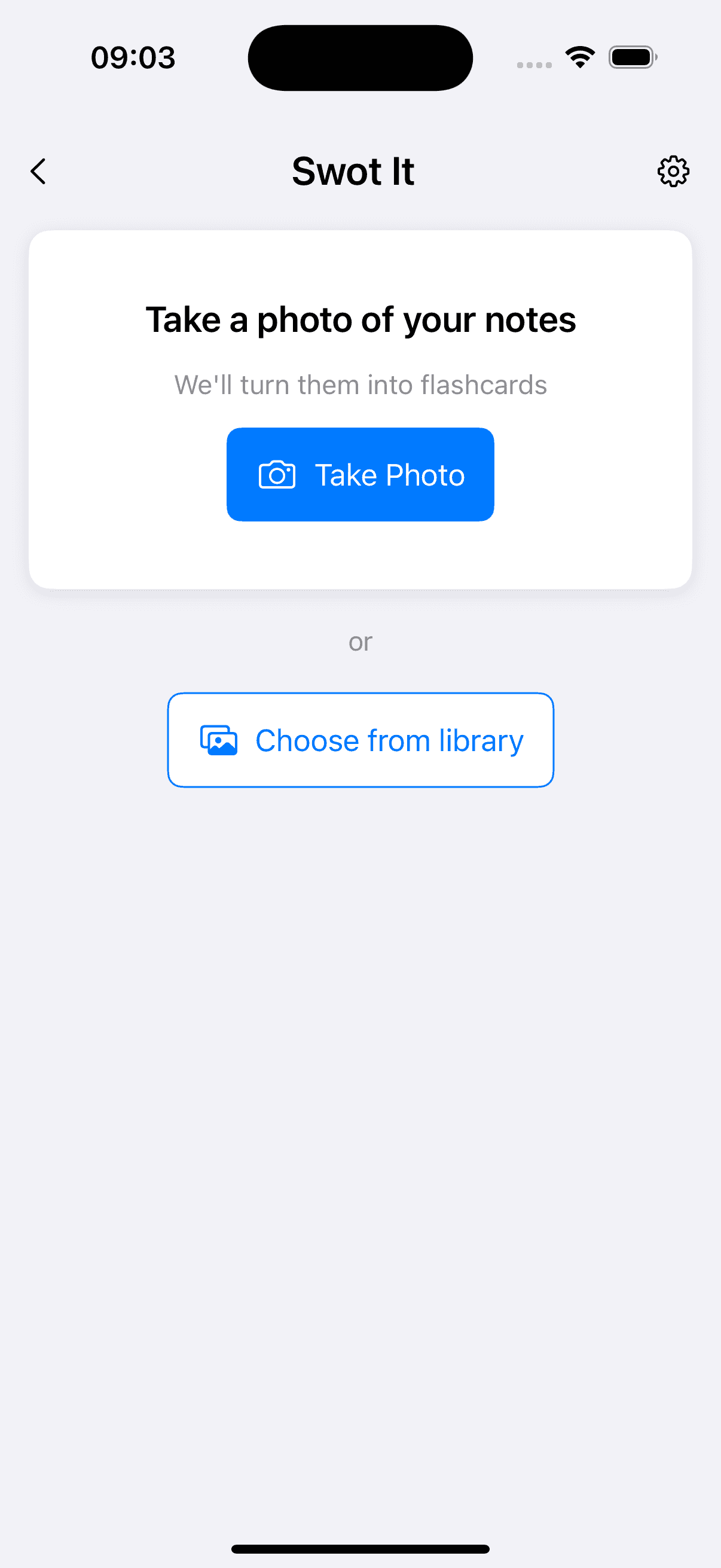

Model: claude-sonnet-3.5 Figma Design URL

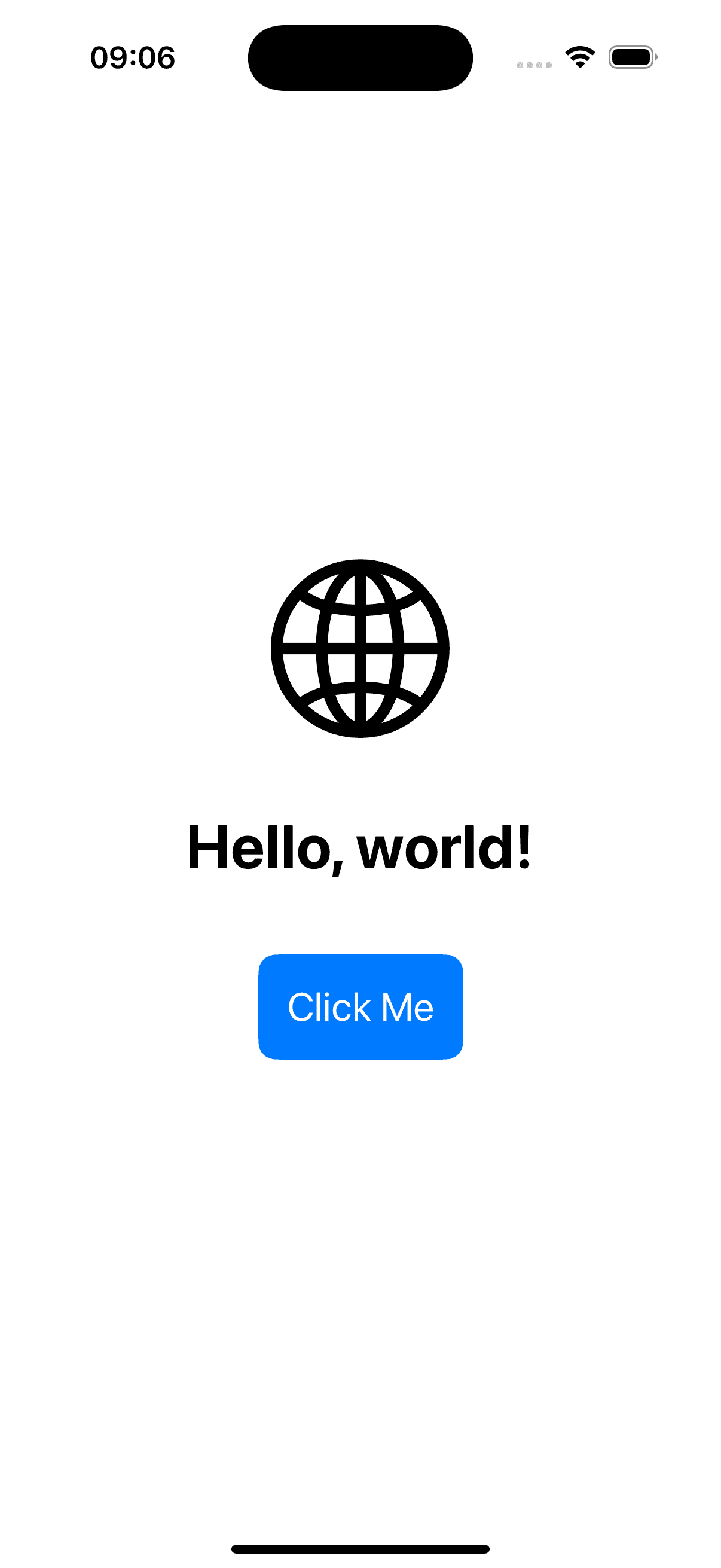

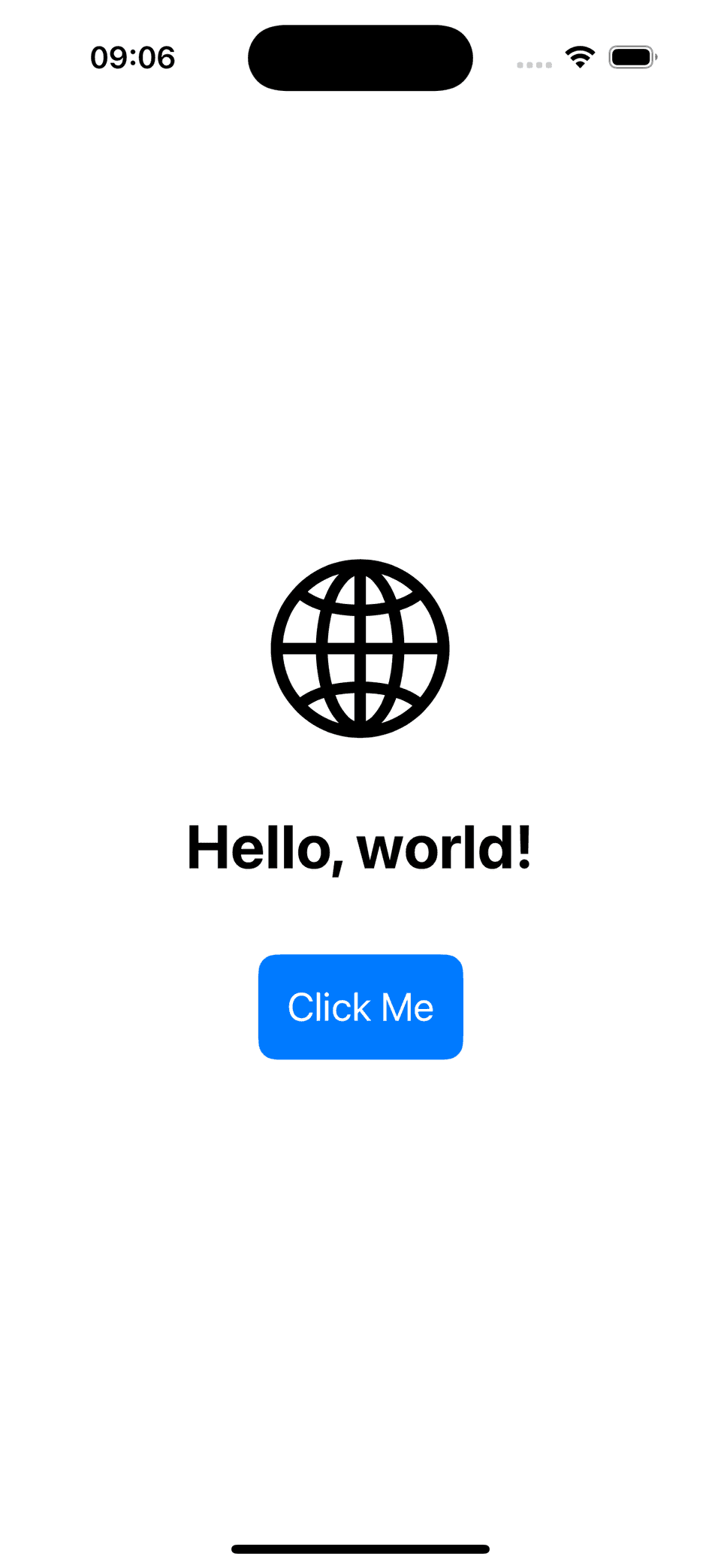

Model: GPT-4o Figma Design URL

Find the code produced for each example by looking at the commit history here

Asking And Refining

Big Prompt

Prompt	Model	Output

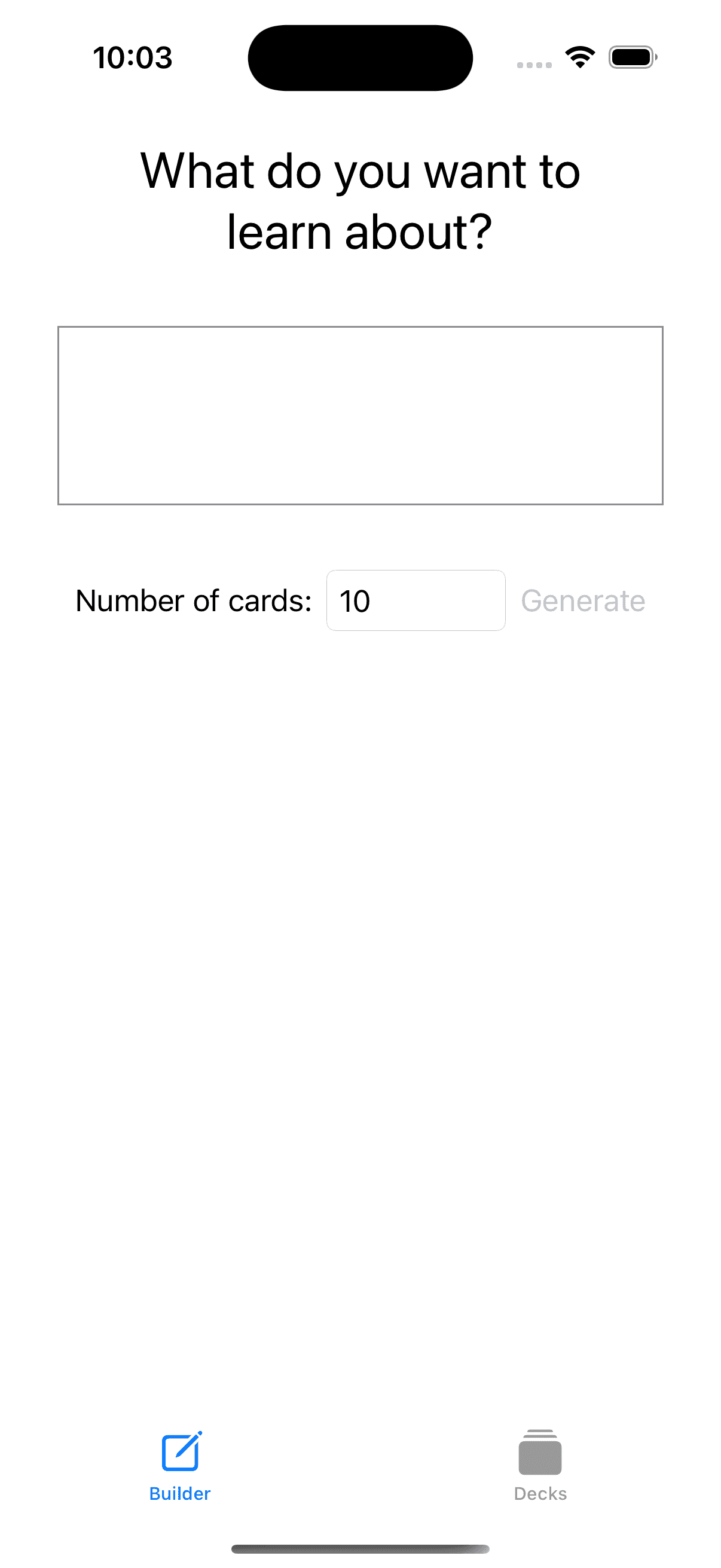

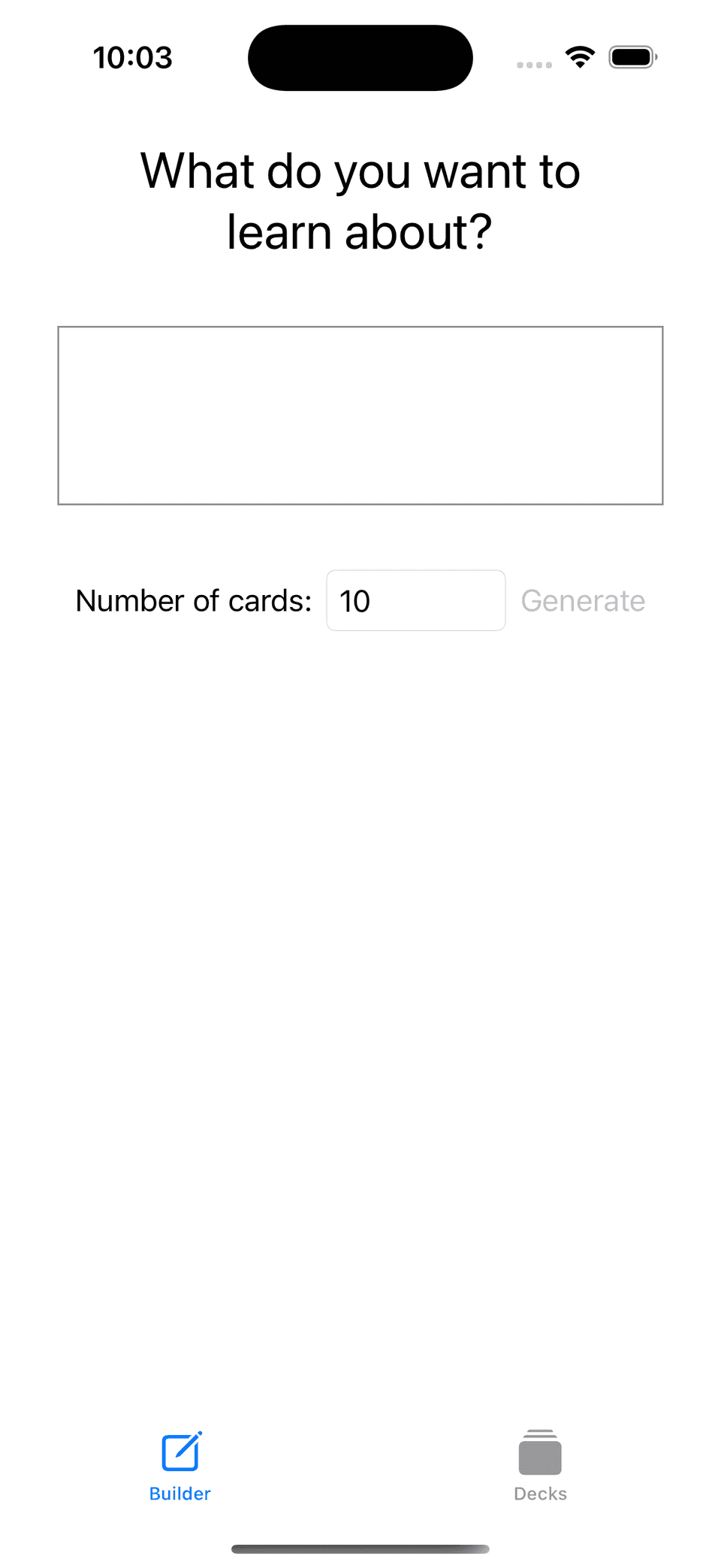

see Big prompt with details	claude-sonnet-3.5

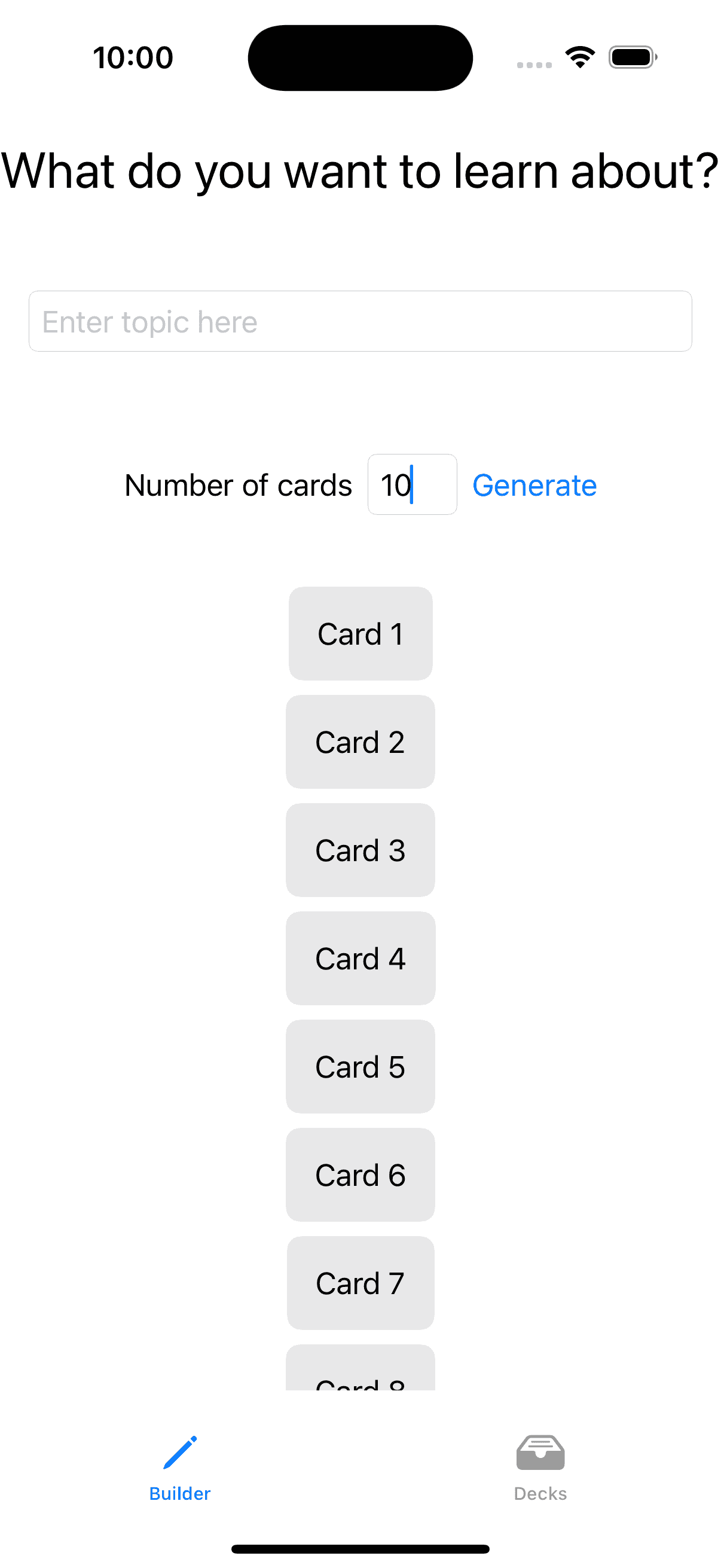

🏆 see Big prompt with details	gpt-4o
see Small prompts creating iteratively	claude-sonnet-3.5

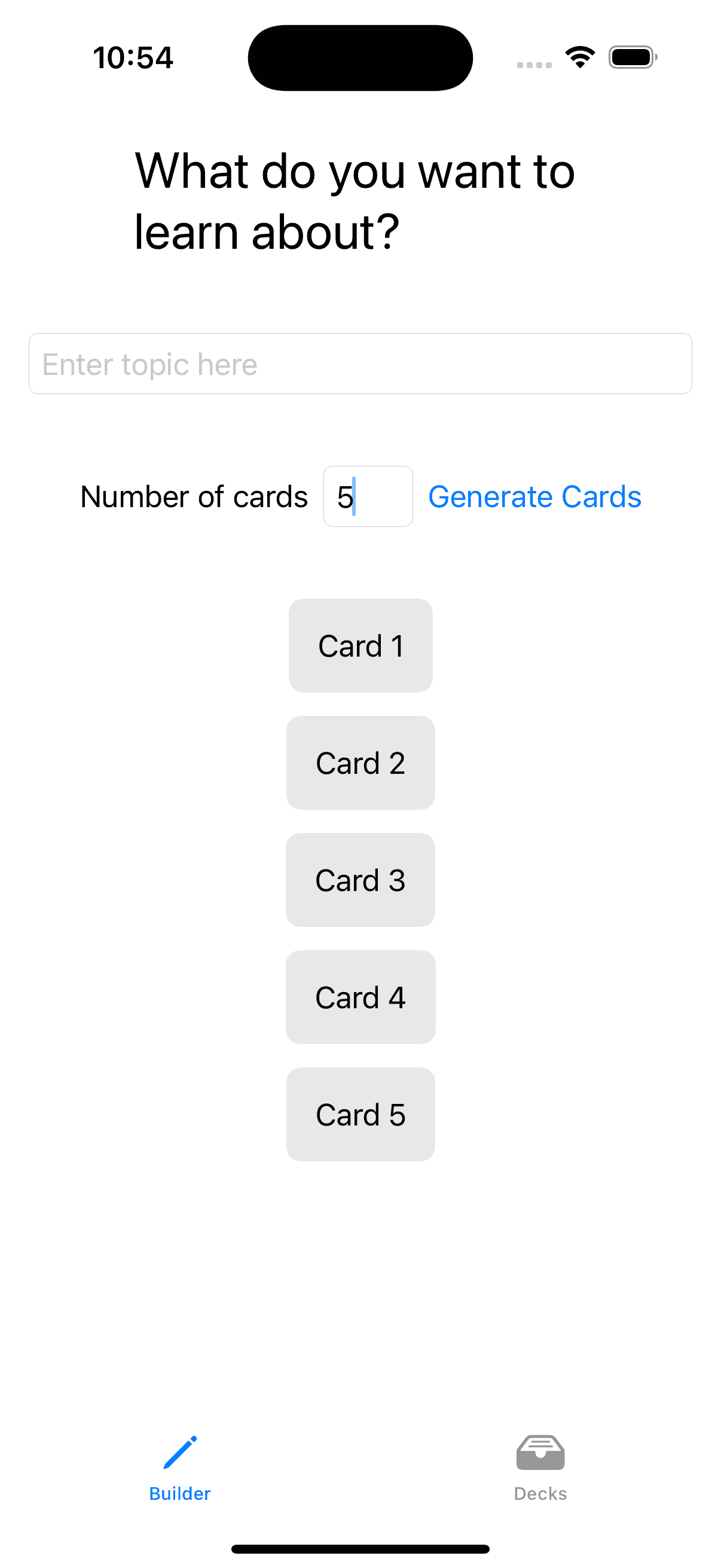

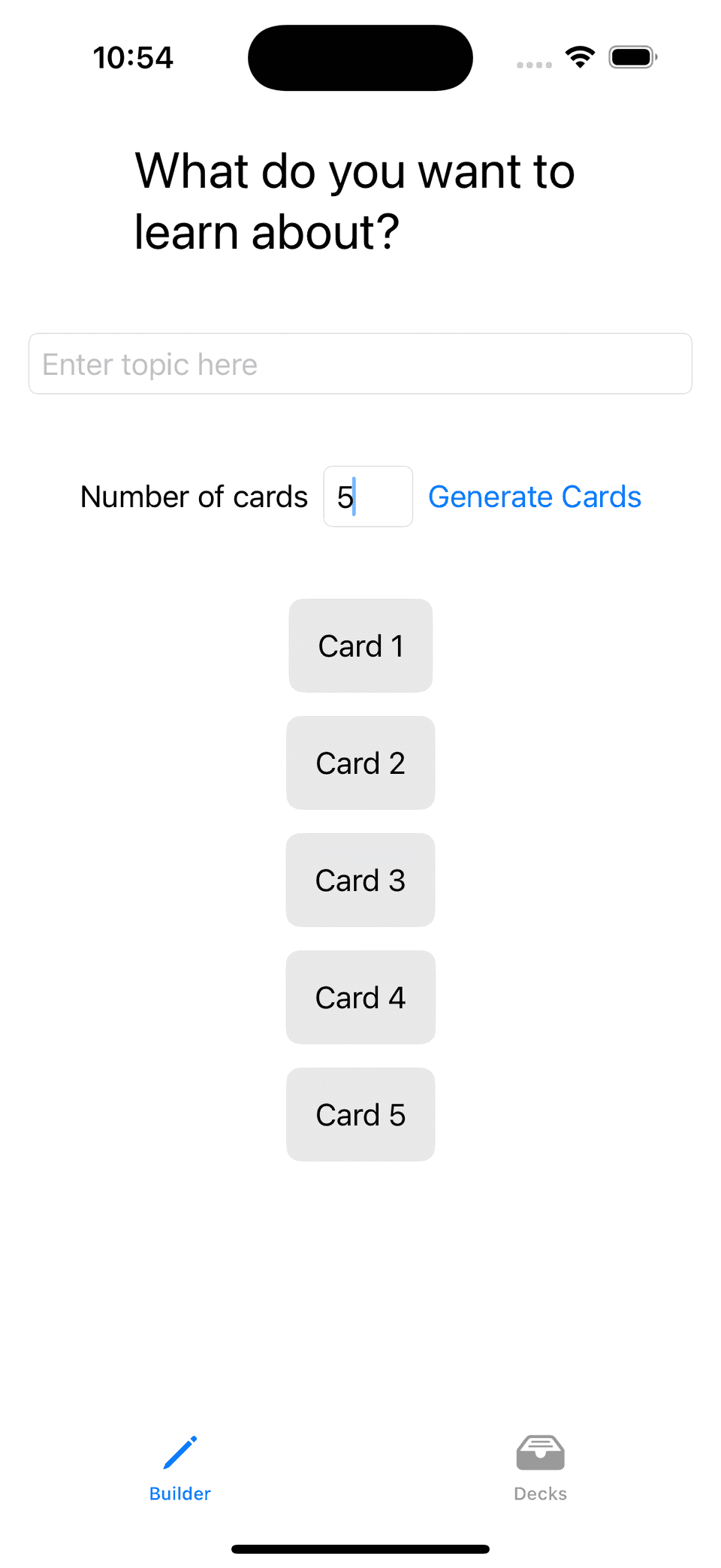

see Small prompts creating iteratively	gpt-4o

In all the workflows listed above, to get to a point where I was happy with the code required subsequent changes to refine the implementation such as using a LazyVStack vs VStack, or splitting the view into smaller pieces.

Tools used

• Cursor AI Version: 0.41.2
  • LLM: claude-3.5-sonnet / gpt-4o
• VSCode Version: 1.91.1
• Xcode 16.0
• iOS 17.5
